Xmod and Evo Motor Upgrades I've tried Part 4 of 4
Jump to Page (1) (2) (3) (4)

These are the current line-up of motors I've installed and tested


Volts
Amps
RPM
4.8
.99
37620
6.0
1.14
47250
7.2
1.50
57600


R-Tuned
By XMOdSpeed

XmodSpeed is not around anymore but someone bought their stock and has been selling these for a while now.

I would put this motor in a class with the PN S03 or FATBoy HC. It spins similar rpm numbers and tops out at 33 mph during my speed test. For $14 on eBay it is well worth a look. The Neo mags and BB can are almost worth the 14 bucks. In my basement it showed signs of a good large track motor with decent acceleration and decent torque on my new Industrial carpet which held it back a bit. Any day now they will be done with street repairs in front of my house so more info to come.





Volts
Amps
RPM
4.8
.86
26870
6.0
.90
35820
7.2
.97
42670

Specs & Features:

  • Special pattern wound design using a regular armature with 31AWG High Standard Enamel Copper Wire
  • Uses a "FAT" Silver, Ceramic base Commutator
  • High Quality EGR Ball Bearing motor can
  • High Performance carbon Brushes
  • Silver Coated Atomic Neodymium Magnets
  • 104/3 motor capacitor





Speed Stream V2 Stock
By TeamMNM

Anyone can build a super hot super fast motor that you need to adjust your Fet setup to use. A real challenge is building a motor that is fast and will run on Gen Fets. I have owned a lot of motors and many have claimed to be the Fastest stock Fet motors. So far the speedy BB and the Torque-tuned with carbon brushes added to me have been my fastest stock motors. Now we have a new competitor. At 42k rpm it seems to have what it takes. That is only 3000 less than the Torque-tuned. What this motor has more of than the other 2 is torque. The PN and TT are not lacking torque but they do not have the torque this motor has. The Neo Mags make a difference and probably account for the loss in rpm. This motor on the speed checker topped out @ 25 mph which is not the fastest number i have but i will get it on the street side by side with my best Torque-tuned to prove "RPM sells motors...Torque wins Races.

Updated.
Well Torque does win races but in this case the Tamiya Torque Tuned with carbon brushes added had enough torque to win. I guess the Torque tuned is more powerful than I though. All in all this is still a great motor with a lot of power and should be used for track racing.





Volts
Amps
RPM
4.8
3.40
63700
6.0
7.2
  Silver Core Modified Motor
By TeamMNM

This is an extreme motor! I have owned quite a few fast motors... The EVO Rocket and The Plasmatomic to name a few, but I only have 2 Extreme motors. This is the second one. How does it compare to the King AKA Light speed Pro Edition. Well on the speed checker it was 1 kph slower than the LSPro. I ran my LSPro and it hit 82 kph... This beast hit 81 kph. This test was done with Lithium ions with a V2.2 board. I am setting up a EVO Poly car for round 2. Stay tuned!

Features:
* Ultra Special Silver Wire pattern wound design
* Atomic ball bearing motor can
* Spiral Armature with "FAT" Silver (heat resistant) Commutator
* High Performance (heat resistant) carbon Brushes
* Silver Coated Neodymium Magnets
* 104 motor capacitors

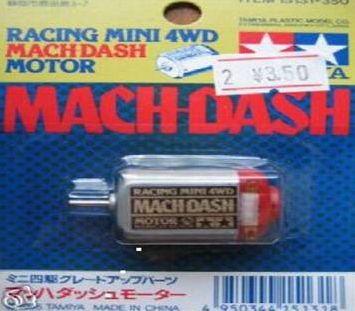

  Mach-Dash
By Tamyia

Coming soon.
